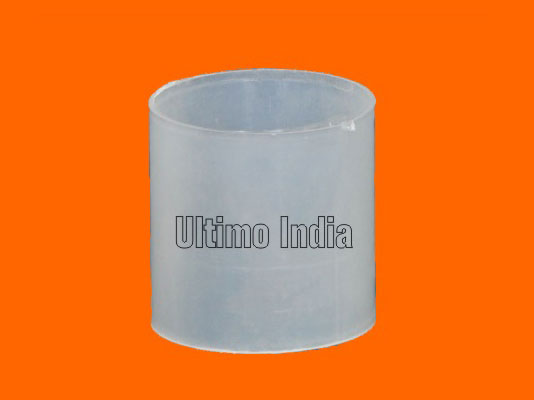

FEP Raschig Ring

FEP Raschig Ring Send Enquiry
  • Excellent chemical resistance. Resistance to almost all organic chemicals, acids & alkalis. This also includes Hydrofluoric Acid (HF), Fluorinated Chemicals, Bromine (Br2) and Brominated Compounds.
  • We use virgin FEP raw material for the manufacturing of FEP Raschig Rings.
  • No recycled or reprocessed raw material is being used.
  • FEP Raschig Rings can be used for the distillation or scrubbing of highly corrosive or highly pure chemicals and bulk drugs.
  • FEP Raschig Rings are suitable for FEP lined distillation columns or gas scrubbers, FEP coated distillation columns or scrubbers and glass lined columns or gas scrubbers.
  • FEP Raschig Rings can handle corrosive chemicals in Pharmaceutical, Bulk Drugs, Organic Chemicals; Inorganic Chemicals Include Bromine and Bromine Derivatives, Chlorine & Chlorine Derivative, Fluorine & Fluorinated Derivatives.
  • Temperature limit: suitable up to 140-150 ºC (Write to us as it may vary with different chemicals)

Available size: 25mm FEP Raschig Rings, 38mm FEP Raschig Rings, 50mm FEP Raschig Rings

Technical Data

Size Nos. / Cu.m. Surface m2 / m3 Voidage % Packing Factor F
25 mm 51,000 210 86 137
38 mm 13,500 135 90 82
50 mm 6,500 100 92 57
